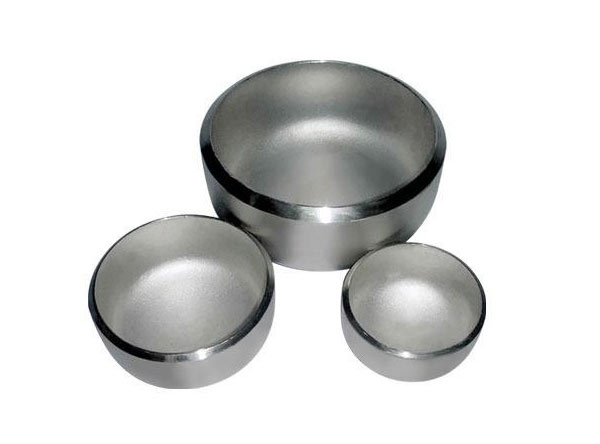

Monel Buttweld End Cap

ASME / ANSI B16.9 Monel End Cap, SS Pipe Cap, Monel Pipe End Cap, Monel Pipe End Cap Manufacturers and Suppliers in india.

Highly acclaimed Manufacturer & Exporter presents best offer ever on ANSI/ASME B16.9 Butt weld End Cap. We have specialization to manufacture customized ANSI/ASME B16.9 Butt weld End Cap per customers’ specifications, we welcome small quantity order.

Vishal Tube Industries is one of the leading Manufacturers, Supplier and Exporters of High Quality ASME/ANSI B16.9 Pipe End Caps in Mumbai, India. We offer these fittings in different form such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloy, and Copper Alloy Steel, in different grades and sizes respectively.

Monel Pipe End Caps, also known as Pipe Caps, suggest their function through their name: they act as a seal to the end of a pipe. Their primary function is to waterproof piping networks in addition to resisting chemicals, moisture and weather. Our end caps have pressure releasing abilities and flexible. We offer threaded ANSI B16.9 Pipe Caps for quick assembly that also avoid the pipe from getting cracked or damaged. Our Monel End caps are available in high temperature resisting materials, in a variety of colours, finishes and in a wide array of sizes.

Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt Weld End Cap are corrosion resistance, sturdy and durable. We also supply ANSI/ASME B16.9 Butt weld End Cap & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of ANSI/ASME B16.9 Butt weld End Cap. When you place an order with Vishal Tube Industries, you will receive the products that will stand up in service from people that will stand behind their product.

The function of a Monel Butt Weld End Cap Fitting is to block off the end of a line in a piping system. The Butt Weld Cap Pipe Fittings is fitted by placing the end cap over the open line and welding around the joint. Meanwhile, our products are can further be made-to-order as per the detailed requirements given by our valuable clienteles.

Advantages of Monel Buttweld End Cap

  • Offer permanent leakproof
  • Adds strength and power to the pipng structure
  • Reduce pressure losses
  • Deliver a framework that uses atleast space

Specifications

Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Monel Buttweld End Cap
Monel 400, Monel K500, Monel R-405

Type: Butt Weld (BW)
Dimension: ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25

Dimensions

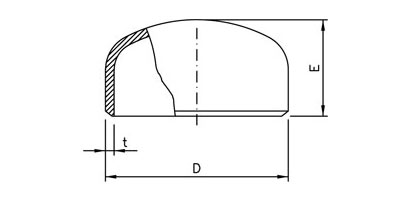

Diagram

CAPS – ANSI B 16.9 dimension

inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75
  25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28    700 711,20 266,70
Dimension in mm

Uses & Application

Chemical Oil Mills Petrochemical Mining
Fertilizers Shipbuilding Power Plant Steel Plant
Oil & Gas Defence Paper Ports
Cement Engineering Co. Sugar Government Org. etc.

Packaging

Depending on the size of the diameter of the fittings these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.

Marking of packages

Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color.

Types of Packaging

  • Bundles (hexagonal)
  • Wooden Boxes
  • Crates (steel/wooden)
  • Special crates for U-Bend tubes with each radius separated
