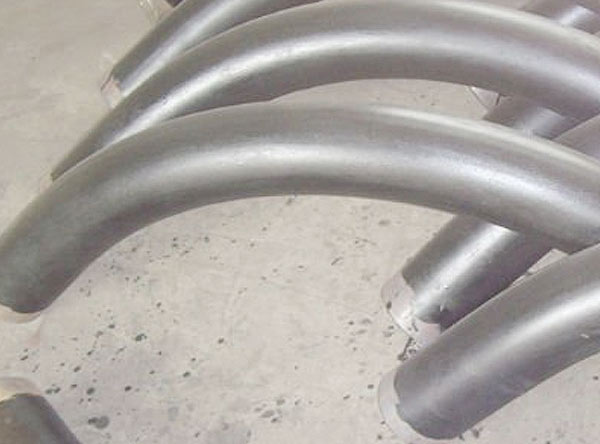

Monel Buttweld Long Radius 3D/5D Bend

Long radius 90 Degree elbows 3D & 5D in sizes up to and including 4” are provided with 4” (102 mm) long tangents, sizes 5” to 10” are provided with 1D long tangents and sizes 12” to 30” are provided with 12” (305 mm) long tangents.

ANSI B16.9 Monel Buttweld 3D/5D Pipe Bends, ASME B16.9 Monel 3D/5D Pipe Bends, Butt Weld Monel 3D/5D Pipe Bends, Monel 5D Bends Pipe, Stockist of Monel 3D/5D Pipe Bend, Buttweld Monel 3D/5D Pipe Bend, Monel 3D/5D Pipe Bends Dealer in India, ASTM A403 SS Monel 3D/5D Pipe Bends, Buttweld Monel 3D/5D Pipe Bends, Steel 5D Pipe Bend Wholesaler, Titanium 3D/5D Pipe Bend, Nickel Alloy 200 3D/5D Pipe Bends, Alloy Steel Buttweld 3D/5D Pipe Bend, High Quality 3D/5D Pipe Bends Manufacturer in Mumbai, India.

Vishal Tube Industries is one of the leading Manufacturer of Long Radius Monel 3D/5D Bend in india, we are award winning Supplier of Monel Long Radius 3D/5D Bend in india, We are ISO Certified and best quality product Exporter of Long Radius Monel 3D/5D Bend in india. Vishal Tube Industries is Largest Stockist of Long Radius Monel 3D/5D Bend in india. We are continuously expanding our product line as a Stockholder of Long Radius Monel 3D/5D Bend in india and Trader of Long Radius Monel 3D/5D Bend in india and provides our products to client in a combination of good grades, thickness, length, and surface finish. To fulfil Emerging customers need we Started working as a distributor and becomes largest Distributor of Long Radius 3D Bend in india.

We Manufacture a wide range of Buttweld Bend (ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43), SS Buttweld Pipe Bend Exporter in India, Stainless Steel Buttweld Long Radius Bend, Buttweld Titanium Bend, ASTM A403 LR Pipe Bend, ASME B16.9 Titanium Buttweld Bend, Buttweld Piggable Pipe Bends, Hot Bend Stockholder, Buttweld Titanium 3D/5D Pipe Bend Dealers, Carbon Steel Induction Bend Distributors, Alloy Steel Buttweld Titanium 5D Bend in Saudi Arabia, Nickel Alloy Buttweld 5D Bend Suppliers, Inconel Buttweld 5D Bend.

Application

  • Uses in Oil and Gas Pipeline
  • Uses in Chemcial Industry
  • Uses in Plumbing
  • Uses in Heating
  • Uses in Water Supply Systems
  • Uses in Power Plant
  • Uses in Paper & Pulp Industry
  • Uses in Fabrication Industry

Specifications

Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Monel
Grade: ASME SB381/381M R50400, ASTM B381/381M R50400

Type: Butt Weld (BW)
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Dimensions of Buttweld Long Radius 3D/5D Bend

Diagram

Nominal
Pipe Size
Outside
Diameter
Inside
Diameter
Wall
Thickness
Center
To End
Pipe
Schedule
Weight
Pounds
1/2 0.84 0.622 0.109 1.5 40 0.16
3/4 1.05 0.824 0.113 1.5 40 0.17
1 1.32 1.049 0.133 1.5 40 0.4
1 1/4 1.66 1.38 0.14 1.88 40 0.55
1 1/2 1.9 1.61 0.145 2.25 40 0.8
2 2.38 2.07 0.154 3 40 1.6
2 1/2 2.88 2.47 0.203 3.75 40 3.2
3 3.5 3.07 0.216 4.5 40 4.8
3 1/2 4 3.55 0.226 5.25 40 6.6
4 4.5 4.03 0.237 6 40 8.9
5 5.56 5.05 0.258 7.5 40 15.1
6 6.62 6.07 0.28 9 40 24
8 8.62 7.98 0.322 12 40 47.8
10 10.75 10.02 0.365 15 40 83.4
12 12.75 12 0.375 18 * 123
14 14 13.25 0.375 21 30 155
16 16 15.25 0.375 24 30 206
18 18 17.25 0.375 27 * 262
20 20 19.25 0.375 30 20 324
24 24 23.25 0.375 36 20 466
30 30 29.25 0.375 45 * 720
36 36 35.25 0.375 54 * 1,039
42 42 41.25 0.375 63 * 1,420
48 48 47.25 0.375 72 * 2,000

ANSI/ASME B16.9 Buttweld Long Radius 3D/5D Bend Godown

We are the manufacturer of ANSI/ASME B16.9 Butt weld Long Radius 3D/5D Bend. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 Buttweld Long Radius 3D/5D Bend that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.

Why choose us for ASME B16.9 Buttweld Long Radius 3D/5D Bend?

  • On-Time Delivery Every Time
  • Competitive Prices
  • High Quality Product
  • Quick Response by Email & by Phone
  • An ISO 9001:2008 Certified Company

ASME B16.9 Buttweld Long Radius 3D/5D Bend Marking & Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Long Radius 3D/5D Bend as needed with the most suitable & visible marking technique. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Long Radius 3D/5D Bend according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
