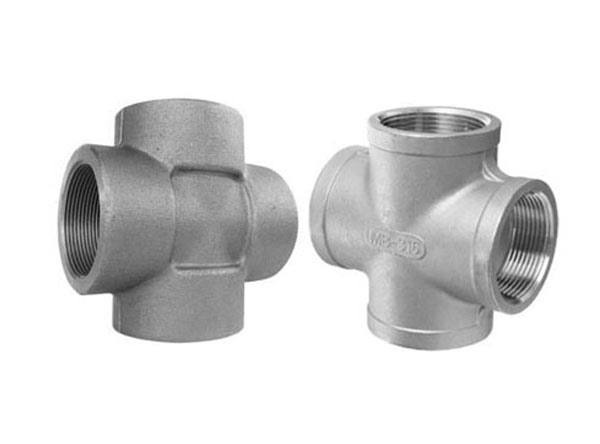

Duplex Steel Forged Threaded Equal/Reducing/Cross Tee

Duplex Steel Socket Weld Equal Cross, Alloy Steel Unequal Cross, ASME B16.11 CS Forged Cross Suppliers in India. Duplex Steel Threaded Equal Cross, Carbon Steel Threaded Unequal Cross Manufacturer, Suppliers & Exporter. Duplex Steel Threaded Equal Cross, Duplex Steel Reducing Cross Exporter, Duplex Steel Forged Cross Leading Manufacturers. ASME A182, 234, 815, ASME SB 336, 111, 466 ASME B16.11, MSS SP-79, BS 3799 Threaded Equal & Unequal Cross.

Vishal Tube Industries is one of the largest exporter, manufacturer and supplier of Duplex Steel Forged Threaded Equal/Reducing/Cross Tee in India. These fittings are provided by us in different metals, sizes and finishes, for to ensemble the pipe fitting requirements of several industries. The major function of these Unequal Cross fittings is to let the movement at 90 degree to the primary way of flow, where the prime flow passes all the way in the course of ‘run’.

Duplex Steel Equal Cross fittings come in T-shaped device which has three different outlets in it. These are used to transmute the pathway of flows from pipe. Our Duplex Steel Forged Threaded Equal/Reducing/Cross Tee can further be made to order in terms of thicknesses, sizes and specifications as per the specific requirements of our clients.

We are one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Duplex Steel Forged Threaded Equal/Reducing/Cross Tee. These Threaded Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. These are also offered in accordance with the national and international standard & specifications. These Duplex Steel Threaded Cross available in different size, grades, specification & thickness as per the clients requirments. These Duplex Steel Forged Threaded Equal/Reducing/Cross Tee widely used in various application industry like oil & gas, chemical processing, petrochemical etc.

Our Duplex Steel Forged Threaded Equal/Reducing/Cross Tee are used to connect the pipes of different diameters and change the direction of pipe flow. These Equal Tee Socket Weld and Unequal Tee Threaded Fittings are being offered by us in different metals, sizes and finishes to suit the pipe fittings demands of several industries. Meanwhile, these Duplex Steel Forged Threaded Equal/Reducing/Cross Tee can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients. We offer the same in market leading prices.

Advantages of Forged Threaded Equal/Reducing/Cross Tee

  • Durable finish standards
  • Accurate dimension
  • Tensile strength
  • Leak Proof

Specifications

Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Duplex Steel
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Type: Butt Weld (BW)
Dimension: ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25

Dimensions

Diagram

Dimensions threaded Cross - NPS 1/2 to 4 - 2000 LBS - ASME B16.11

NPS   Minimum Length
of Thread
Outside Diameter
of Band
D
Center to End
A
Minimum
Wall Thickness
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
17 18 56 44 3.89
17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Dimensions threaded Cross - NPS 1/2 to 4 - 3000 LBS - ASME B16.11

NPS   Minimum Length
of Thread
Outside Diameter
of Band
D
Center to End
A
Minimum
Wall Thickness
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
17 18 62 51 5.28
17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18

Dimensions threaded Cross - NPS 1/2 to 4 - 6000 LBS - ASME B16.11

  NPS   Minimum Length
of Thread
Outside Diameter
of Band
D
Center to End
A
Minimum
Wall Thickness
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
17 18 75 60 10.59
17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

Uses & Application

Chemical Oil Mills Petrochemical Mining
Fertilizers Shipbuilding Power Plant Steel Plant
Oil & Gas Defence Paper Ports
Cement Engineering Co. Sugar Government Org. etc.

Packaging

Depending on the size of the diameter of the fittings these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.

Marking of packages

Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color.

Types of Packaging

  • Bundles (hexagonal)
  • Wooden Boxes
  • Crates (steel/wooden)
  • Special crates for U-Bend tubes with each radius separated
