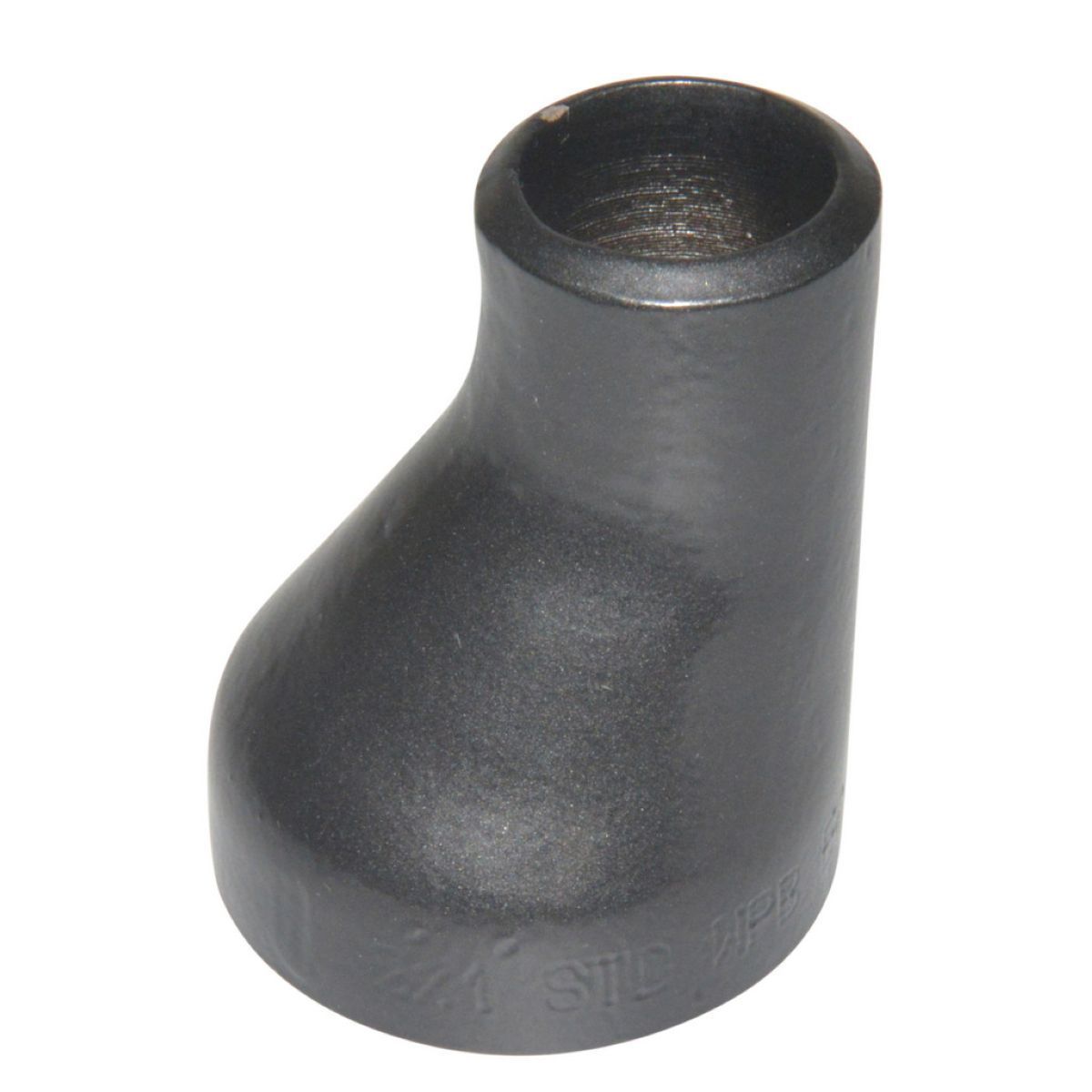

Incoloy Buttweld Eccentric Reducer

Highly acclaimed Manufacturer & Exporter presents best offer ever on ANSI/ASME B16.9 Butt weld Incoloy Eccentric Reducer. We have specialization to manufacture customized ANSI/ASME B16.9 Incoloy Butt weld Eccentric Reducer per customers’ specifications, we welcome small quantity order.

High Quality Eccentric Reducers, Manufacturer Of ASTM A403 Incoloyl Eccentric Reducer, Buttweld Incoloy Eccentric Reducers Fittings, Global Supplier of ANSI B16.9 Pipe Reducer Fittings, Buttweld Incoloy Eccentric Reducer, Nickel Alloy 200 Eccentric Reducer, Dealer Of Eccentric Reducer, Incoloy Buttweld Reducer in Mumbai, India. Stockist of Incoloy Eccentric Reducer, Best Price of Duplex Steel Eccentric Reducer Fittings, Incoloy Eccentric Reducers Dimensions, 304 SS Eccentric Reducers, Alloy Steel Eccentric Reducers, Butt Weld Eccentric Reducer, Eccentric Reducers Dealer in India, ASME B16.9 Eccentric Reducer.<

We are offering our clients with Buttweld Incoloy Eccentric Reducer that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these Incoloy eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.

Our company Petromat Oils & Gas Equipments is known for producing high quality Incoloy Butt Weld Eccentric Reducer. Incoloy Eccentric reducer specially made for connecting two pipes that has different sizes. These eccentric reducers have tapered slanted shape wherein one side is symmetrical to the source stream and the other side is slanted. These are used between two pipes to reduce the flow of fluid or gas into and out of a pump. Incoloy Eccentric reducer can also be used inversely to increase the flow of the substance. Our butt Weld eccentric reducer can be made of premium quality stainless steel, brass, bronze, aluminum, iron and high grade plastic depending on client’s specification.

Leveraging on the support of our dexterous workforce, we are able to put forth an outstanding array of Incoloy Eccentric Reducer. This reducer is according to the market standards by utilizing high quality material & modern techniques. Our reducer is well tested on several parameters so as to dispatch a defect free range. The offered reducer is made accessible in various specifications to meet the requirements of our customers.

Features

  • Rust proof and moisture resistant
  • Corrosion-resistant
  • High tensile strength
  • Ventilation facility pipeline
  • Solar energy facility
  • Chemical industrial pipeline
  • Water supply facility
  • Food and Nourishment Industrial Pipeline

Specifications

Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Incoloy
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT

Type: Butt Weld (BW)
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Dimensions of Buttweld Eccentric Reducer

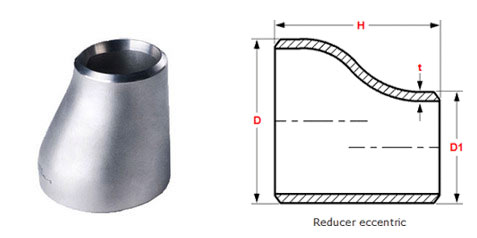

Diagram

Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89
80×32 3×1.1/4 88.9×42.4 89×38 89
90×80 3.1/2×3 101.6×88.9 102
90×65 3.1/2×2.1/2 101.6×73.0 102
90×50 3.1/2×2 101.6×60.3 102
90×40 3.1/2×1.1/2 101.6×48.3 102
90×32 3.1/2×1.1/4 101.6×42.4 102
100×90 4×3.1/2 114.3×101.6 102
100×80 4×3 114.3×88.9 108×89 102
100×65 4×2.1/2 114.3×73.0 108×76 102
100×50 4×2 114.3×60.3 108×57 102
100×40 4×1.1/2 114.3×48.3 108×45 102
125×100 5×4 141.3×114.3 133×108 127
125×90 5×3.1/2 141.3×101.6 127
125×80 5×3 141.3×88.9 133×89 127
125×65 5×2.1/2 141.3×73.0 133×76 127
125×50 5×2 141.3×60.3 133×57 127
150×125 6×5 168.3×141.3 159×133 140
150×100 6×5 168.3×114.3 159×108 140
150×90 6×3.1/2 168.3×101.6 140
150×80 6×3 168.3×88.9 159×89 140
150×65 6×2.1/2 168.3×73.0 159×76 140
200×150 8×6 219.1×168.3 219×159 152
200×125 8×5 219.1×141.3 219×133 152
200×100 8×4 219.1×114.3 219×108 152
200×90 8×3.1/2 219.1×101.6 152
250×200 10×8 273.0×219.1 273×219 178
250×150 10×6 273.0×168.3 273×159 178
250×125 10×5 273.0×141.3 273×133 178
250×100 10×4 273.0×114.3 273×108 178
300×250 12×10 323.9×273.1 325×273 203
300×200 12×8 323.9×219.1 325×219 203
300×150 12×6 323.9×168.3 325×159 203
300×125 12×5 323.9×141.3 325×133 203
350×300 14×12 355.6×323.9 377×325 330
350×250 14×10 355.6×273.0 377×273 330
350×200 14×8 355.6×219.1 377×219 330
350×150 14×6 355.6×168.3 377×159 330
400×350 16×14 406.4×355.6 426×377 356
400×300 16×12 406.4×323.9 426×325 356
400×250 16×10 406.4×273.0 426×273 356
400×200 16×8 406.4×219.1 426×219 356
450×400 18×16 457×406.4 478×426 381
450×350 18×14 457×355.6 478×377 381
450×300 18×12 457×323.9 478×325 381
450×250 18×10 457×273.0 478×273 381
500×450 20×18 508×457 529×478 508
500×400 20×16 508×406.4 529×426 508
500×350 20×14 508×355.6 529×377 508
500×300 20×12 508×323.9 529×325 508
550×500 22×20 559×508 508
550×450 22×18 559×457 508
550×400 22×16 559×406.4 508
550×350 22×14 559×355.6 508
600×550 24×22 610×559 508
600×500 24×20 610×508 630×529 508
600×450 24×18 610×457 630×478 508
600×400 24×22 610×406.4 630×426 508
650×600 26×24 660×610 610
650×550 26×22 660×559 610
650×500 26×20 660×508 610
650×450 26×18 660×457 610
700×650 28×26 711×660 610
700×600 28×24 711×610 720×630 610
700×550 28×22 711×559 610
700×500 28×20 711×508 720×530 610
750×700 30×28 762×711 610
750×650 30×26 762×660 610
750×600 30×24 762×610 610
750×550 30×22 762×559 610
800×750 32×30 813×762 610
800×700 32×28 813×711 820×720 610
800×650 32×26 813×660 610
800×600 32×24 813×610 820×630 610
850×800 34×32 864×813 610
850×750 34×30 864×762 610
850×700 34×28 864×711 610
850×650 34×26 864×660 610
900×850 36×34 914×864 610
900×800 36×32 914×813 920×820 610
900×750 36×30 914×762 610
900×700 36×28 914×711 920×720 610
950×900 38×36 965×914 610
950×850 38×34 965×864 610
950×800 38×32 965×813 610
950×750 38×30 965×762 610
1000×950 40×38 1016×965 610
1000×900 40×36 1016×914 1020×920 610
1000×850 40×34 1016×864 610
1000×800 40×32 1016×813 1020×820 610
1050×1000 42×40 1067×1016 610
1050×950 42×38 1067×965 610
1050×900 42×36 1067×914 610
1050×850 42×34 1067×864 610
1100×1050 44×42 1118×1067 610
1100×1000 44×40 1118×1016 1120×1020 610
1100×950 44×38 1118×965 610
1100×900 44×36 1118×914 1220×920 610
1150×1100 46×44 1168×1118 711
1150×1050 46×42 1168×1067 711
1150×1000 46×40 1168×1016 711
1150×950 46×38 1168×965 711
1200×1150 48×46 1220×1168 711
1200×1100 48×44 1220×1118 1220×1120 711
1200×1050 48×42 1220×1067 711
1200×1000 48×40 1220×1016 1220×1020 711

ANSI/ASME B16.9 Butt weld Eccentric Reducer Godown

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Eccentric Reducer as needed with the most suitable & visible marking technique. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Butt weld Eccentric Reducer according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

ANSI/ASME B16.9 Butt weld Eccentric Reducer Marking & Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Eccentric Reducer as needed with the most suitable & visible marking technique.

Why choose us for ANSI/ASME B16.9 Buttweld Eccentric Reducer

  • On-Time Delivery Every Time
  • Competitive Prices
  • High Quality Product
  • Quick Response by Email & by Phone
  • An ISO 9001:2008 Certified Company
