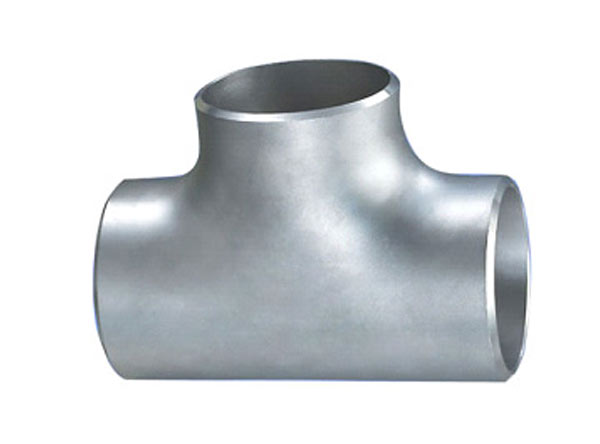

Incoloy Buttweld Equal Tee

Best Price of Incoloy Equal Tee Fittings,Incoloy Equal Tees, Stockist of Incoloy Equal Tee, Buttweld Incoloy Equal Tees Fittings, Incoloy Butt Weld Equal Tee, Incoloy Equal Tees Dealer in India, ASME B16.9 Incoloy Equal Tee, Buttweld Lateral Tee. Stockholder Of Incoloy Equal Tees, Incoloy Buttweld Equal Tee, Steel Butt weld Equal Tee Wholesaler, Incoloy Equal Tees, Copper Nickel Equal Tee Exporter, Incoloy Buttweld Equal Tee, Tee Pipe Fittings Traders in India.

Vishal Tube Industries is a leading ISO 9001:2000 certified Company, has an exhaustive quality control and assessment procedure which takes care that only products that are defect-free and conforms to the set guidelines by respected international agencies. We are a manufacturer, supplier and exporter of Nickel Equal Tees, which are also known as 'straight tees'. These tees have a diameter that is similar to the diameter of the main pipe, hence the name 'equal tee'. We furnish Nickel Butt weld Equal Tees that are installed without much hassle and require less maintenance as well. Being corrosion resistant and give a quick disconnection in case of emergency. We export large quantities of ANSI B16.9 Nickel Equal Tees to industries like power plants, breweries, sugar, etc.

These are well known for their excellent quality, durability, tensile strength and corrosion resistance. These are used for connecting pipes of different diameters and available in various sizes, models as per the clients’ requirements. Our respected clients can avail these from us at reasonable prices in the market.

ASTM A403 Incoloy Equal Tee, Buttweld Incoloy Equal Tee, Global Supplier of ANSI B16.9 Pipe Tee Fittings, Incoloy Equal Tees Dimensions , Incoloy Equal Tee, Incoloy Buttweld Tee, 304 Nickel Equal Tees, High Quality Equal Tees Manufacturer Of in Mumbai, India.


  • Uses in Oil and Gas Pipeline
  • Uses in Chemcial Industry
  • Uses in Plumbing
  • Uses in Heating
  • Uses in Water Supply Systems
  • Uses in Power Plant
  • Uses in Paper & Pulp Industry
  • Uses in Fabrication Industry


Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Incoloy
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT

Type: Butt Weld (BW)
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

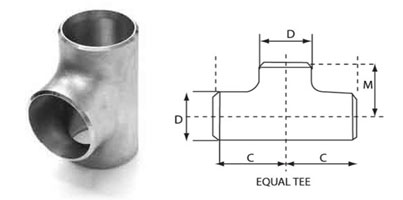

Dimensions of Buttweld Equal Tee


Nominal Pipe Size Outside diameter
at bevel
Run (C) Outlet(M)
1/2" 21.3 25 25
3/4" 26.7 29 29
1" 33.4 38 38
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
2" 60.3 64 64
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
4" 114.3 105 105
5" 141.3 124 124
6" 168.3 143 143
8" 219.1 178 178
10" 273.0 216 216
12" 323.8 254 254
14" 355.6 279 279
16" 406.4 305 305
18" 457.0 343 343
20" 508.0 381 381
22" 559.0 419 419
24" 610.0 432 432

Why choose us for ASME B16.9 Butt weld Equal Tee?

Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our ASME B16.9 Butt weld Equal Tee are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of ASME B16.9 Butt weld Equal Tee. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd's Register, TUV, DNV, BV, SGS, IEI, SAI and etc.

Buttweld Barred Tee Marking & Packaging

Our products like equal tees are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All equal tees are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ASME B16.9 Butt weld Equal Tee according to customers' specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Why choose us for Butt weld Equal Tee

  • On-Time Delivery Every Time
  • Competitive Prices
  • High Quality Product
  • Quick Response by Email & by Phone
  • An ISO 9001:2008 Certified Company
