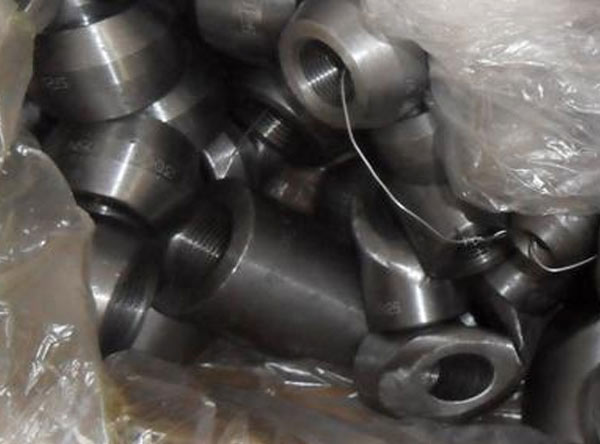

Nickel Sweepolet Olets

Sweepolet, is a contoured, integrally reinforced, butt-weld branch connection with a low stress intensification factor for low stresses and long fatigue life. The attachment weld is easily examined by radiography, ultrasound and other standard non-destructive techniques. Manufactured to meet your specific reinforcement requirements.

Vishal Tube Industries deliver Nickel Sweepolet Olets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.

Branch Connection fittings (also known as Olets) are fittings which provide an outlet from a larger pipe to a smaller one (or one of the same size). The main pipe onto which the branch connection is welded is usually called the Run or Header size. The pipe to which the branch connection provides a channel is usually called the Branch or Outlet size. Branch connections are in all sizes, types, bores, and classes, in a wide range of stainless steel, chrome-moly, and other alloys.

Being a prominent organization of this domain, we are engrossed in offering a wide range of Nickel Sweepolet to the clients. The offered collection of products are manufactured and designed by skillful professionals using high grade materials and advanced technology. Offered products are highly commended among the clients for their wide applications and optimum performance. In order to provide highest client satisfaction, we have priced reasonably these products without compromising with the quality.

We also offer Nickel Sweepolet Olets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.

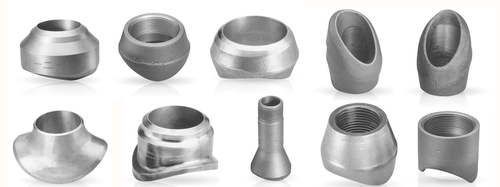

Vishal Tube Industries is a leading manufacturer of branch fitting, buttweld pipe olets, socket weld and threaded pipe olets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe olets such as weldolet, sockolet, threadolet, laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections.

Features

  • Abrasion resistance
  • Corrosion resistance
  • Durability
  • Dimensional accuracy
  • High performance
  • Low Maintenance
  • Long Service Life

Specifications

Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19

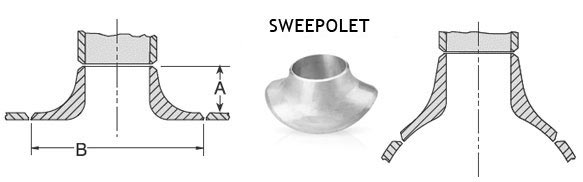

Dimension - Sweepolet

Diagram

Run Size

Outlet Size
Inches

Dimensions

*A

B

6 to 36 1 1/4 1 1/4 4
6 to 36 1 1/2 1 3/4 5 1/2
6 to 36 2 1 1/2 5 1/2
6 to 36 3 1 21/32 7
6 to 36 4 2 1/32 8 3/4
10 to 36 6 2 11/16 13
12 to 36 8 3 15
16 to 36 10 3 1/8 18 1/2
16 to 36 12 3 5/16 20 1/2
20 to 36 14 3 5/8 24
24 to 36 16 3 3/4 28
24 to 36 18 4 5/8 31
24 to 36 20 5 1/8 33
30 to 36 24 5 5/8 38

Uses & Application

Chemical Oil Mills Petrochemical Mining
Fertilizers Shipbuilding Power Plant Steel Plant
Oil & Gas Defence Paper Ports
Cement Engineering Co. Sugar Government Org. etc.
