Titanium Buttweld Dish End

Highly acclaimed Manufacturer & Exporter presents best offer ever on Buttweld Dish End. We have specialization to manufacture customized Buttweld Dish End per customers’ specifications, we welcome small quantity order.

We are one of the prominent exporter and supplier of dish end / dished end heads, flat type dished ends, special shape dished ends, and cones in various dimensions and grades. We can manufacture and export dished ends in stainless steel, aluminium, carbon steel, mild steel, alloy steel and nickel alloys. We also provide a range of custom size industrial products to serve the growing needs of the industrial sector spanning fabricators, petrochemicals, sugar, edible oils, fertilizers, chemical, oil and gas, pharmaceuticals, pulp and paper manufacturing, power generation and other engineering industries.

Titanium Buttweld Dish End maker and exporter of ASME/ANSI B16.9 Buttweld dish Cap pipe fittings available in different structures and size, items like Elbows,Tee, Cross and reducers etc. Buttweld fittings are those fittings which is used in a piping scheme to modify the direction, change pipe diameter or for branching. Buttweld fittings measurements, dimensional resiliences are characterized in the ASME B16.9 guidelines. Light-weight consumption safe fittings are made to MSS SP43.We additionally offer hand crafted Buttweld dish Cap that have been generally valued by our customers.

We manufacture dished ends (dish head) in boiler and pressure vessel grades such as SA 516 Gr. 70 (carbon steel), SA 387 GR 11/22 CL 2 (alloy steel) and stainless steel SA 240 TP 304/304L, 316/316L, 321, 904L. We also manufacture and supply dished ends in aluminium, nickel alloys and titanium grades for special applications.

Advantages of Titanium Buttweld Dish End

  • Offer permanent leakproof
  • Adds strength and power to the pipng structure
  • Reduce pressure losses
  • Deliver a framework that uses atleast space

Specifications

Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials: Titanium Buttweld Dish End
Gr1, Gr2, Gr3, Gr5, Gr7, Gr11

Type: Butt Weld (BW)
Dimension: ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25

Dimensions

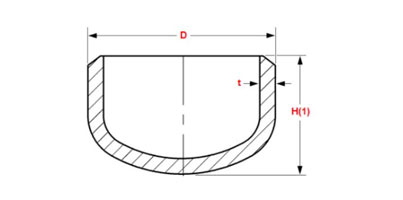

Diagram

NPS O.D.
D
Len
H
W.T.
t
1/2 21.3 25 4.57
3/4 26.7 25 3.81
1 33.4 38 4.57
42.2 38 4.83
48.3 38 5.08
2 60.3 38 5.59
73 38 7.11
3 88.9 51 7.62
101.6 64 8.13
4 114.3 64 8.64
5 141.3 76 9.65
6 168.3 89 10.92
8 219.1 102 12.7
10 273 127 12.7
12 323.8 152 12.7
14 355.6 165 12.7
16 406.4 178 12.7
NPS O.D.
D
Len
H
W.T.
t
18 457 203 12.7
20 508 229 12.7
22 559 254 12.7
24 610 267 12.7
26 660 267 ...
28 711 267 ...
30 762 267 ...
32 813 267 ...
34 864 237 ...
36 914 267 ...
38 965 305 ...
40 1016 305 ...
42 1067 305 ...
44 1118 343 ...
46 1168 343 ...
48 1219 343 ...

Uses & Application

Chemical Oil Mills Petrochemical Mining
Fertilizers Shipbuilding Power Plant Steel Plant
Oil & Gas Defence Paper Ports
Cement Engineering Co. Sugar Government Org. etc.
