We offers thredolet olets, steel thredolet olets, stainless steel thredolet olets, nickel alloy thredolet olets, copper alloy thredolet olets, thredolet olets, duplex steel , carbon steel thredolet olets and alloy steel thredolet olets. Vishal Tube Industries is renowned Manufacturers, Suppliers & Stockists Of Stainless Steel Thredolet – Olet Fittings known for their excellence in Stainless Steel Thredolet Fittings.

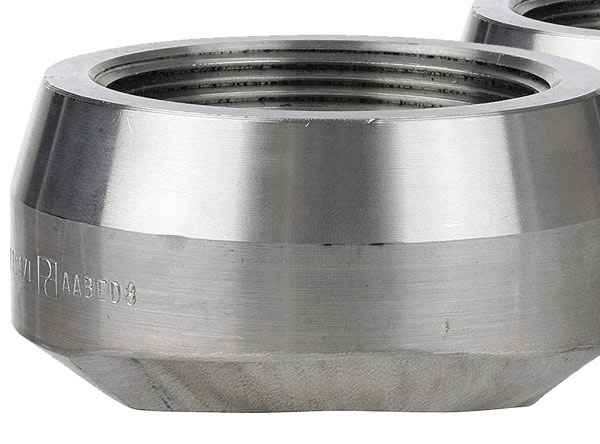

Threadolet utilizes the basic Weldolet however the branch affixes by way of a thread just inside the top of the olet. The bore matches the outlet bore, and the existence of this threading facilitates installation, as no welding is necessary. The Thredolet is considered a threaded fitting, andmanufactured in 3000# and 6000# classes
Branch Connection fittings (also known as Olets) are fittings which provide an outlet from a larger pipe to a smaller one (or one of the same size). The main pipe onto which the branch connection is welded is usually called the Run or Header size. The pipe to which the branch connection provides a channel is usually called the Branch or Outlet size. Branch connections are in all sizes, types, bores, and classes, in a wide range of stainless steel, chrome-moly, and other alloys.

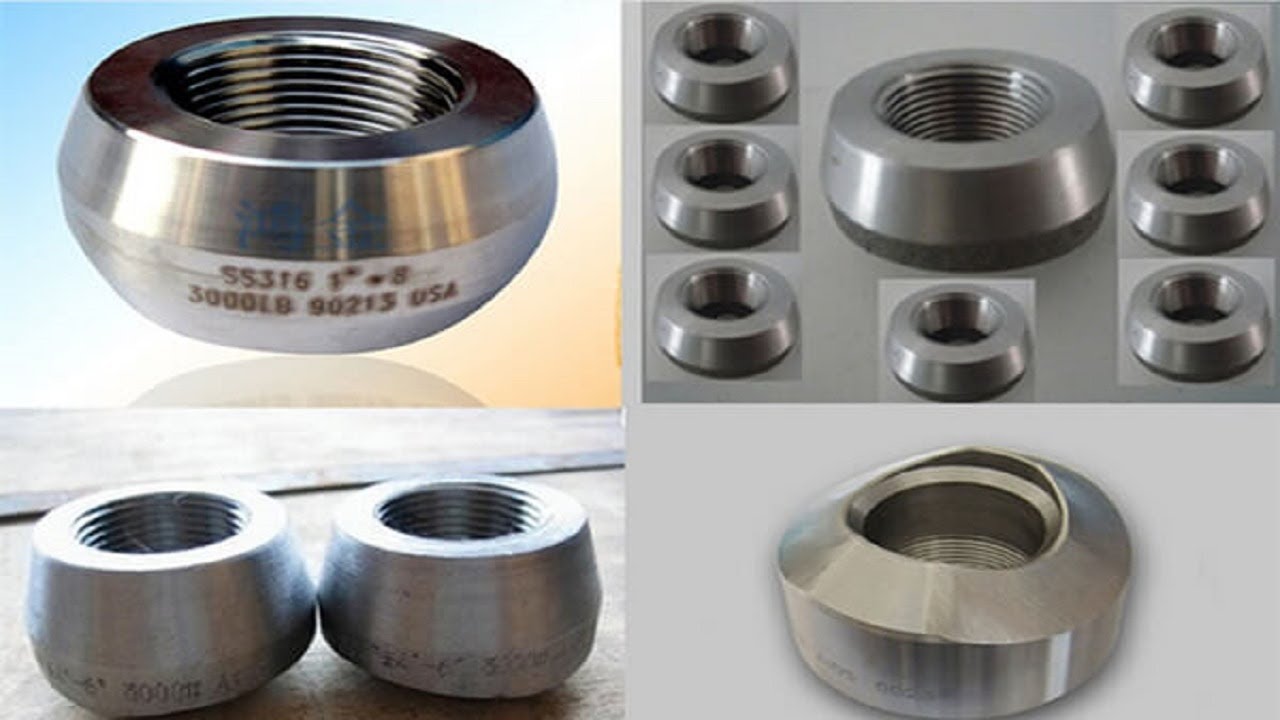

Stainless Steel Thredolet Olets are known as branch connection fittings used to provide an outlet from a larger pipe to a smaller one. Thredolet uses the fundamental Weldolet however the branch affixes by method for an attachment inside the olet. The bore matches the outlet bore, and the existence of a counter bore roughly the size of the OD of the outlet provides a socket where the pipe can sit, encouraging fitting and welding. The Thredolet is considered a socket fitting, and manufactured in 3000LBS, 6000LBS and 9000LBS classes.
Leveraging on our widely spread distribution network, we procure and deal in a high performing range of Threadolets and Stainless Steel Threadolet. Sourced fro authentic vendors, these products find wide applications in pulp & paper mills and fabrication & production of stainless steel products. These can be availed by the esteemed patrons in a wide spectrum of grades, sizes and classes. Our offered products are widely appreciated in the market for their sturdiness and dimensional accuracy.
We also offer Stainless Steel Thredolet Olets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.
Vishal Tube Industries is a leading manufacturer of branch fitting, buttweld pipe olets, socket weld and threaded pipe olets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe olets such as weldolet, sockolet, threadolet, laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections.

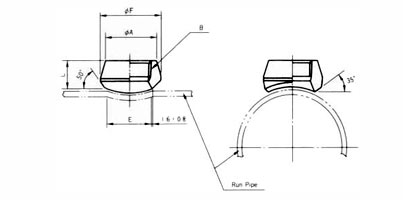

Dimensions: Top Row in Inches / Bottom Row in millimeters.
Root Gap - X - "Space" for welding the O'let is raised off the run pipe to establish proper weld gap by placing spacers, e.g. welding rods, under the fitting. This provides a uniform welding gap between the curvature of the run and base of fitting.
Threaded Ends are in accordance with ASME B1.20.1. Design per MSS SP-97.
Source comes from Bonney Forge (except the sizes in millimeters).
Thredolet® is a registered name. Another often used name is Threaded Outlet.
